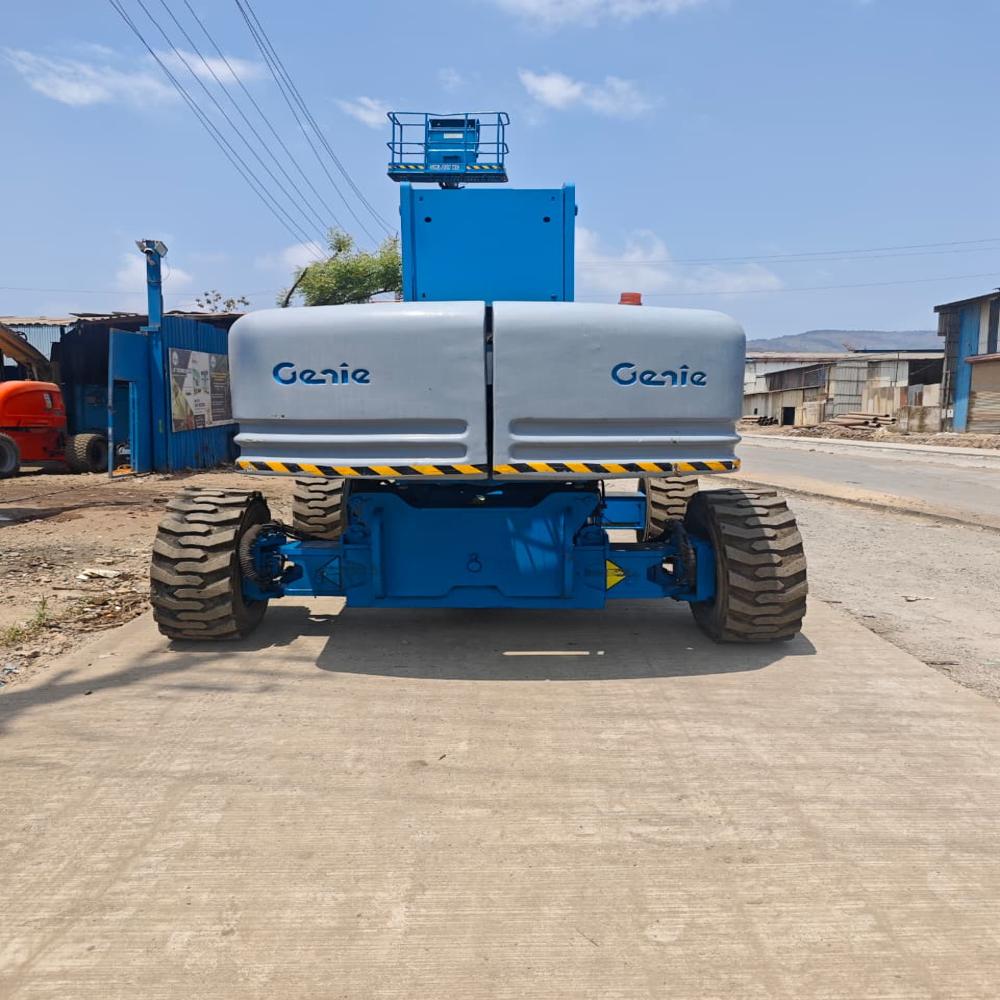

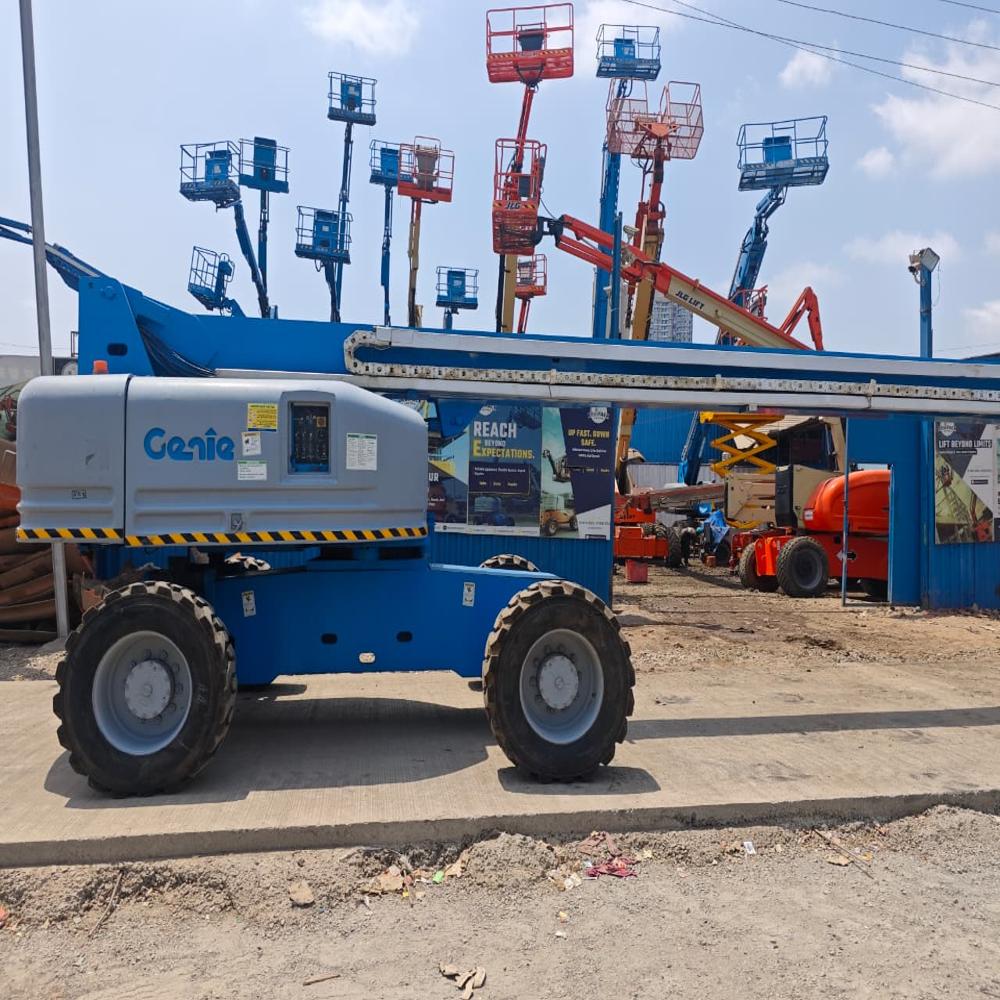

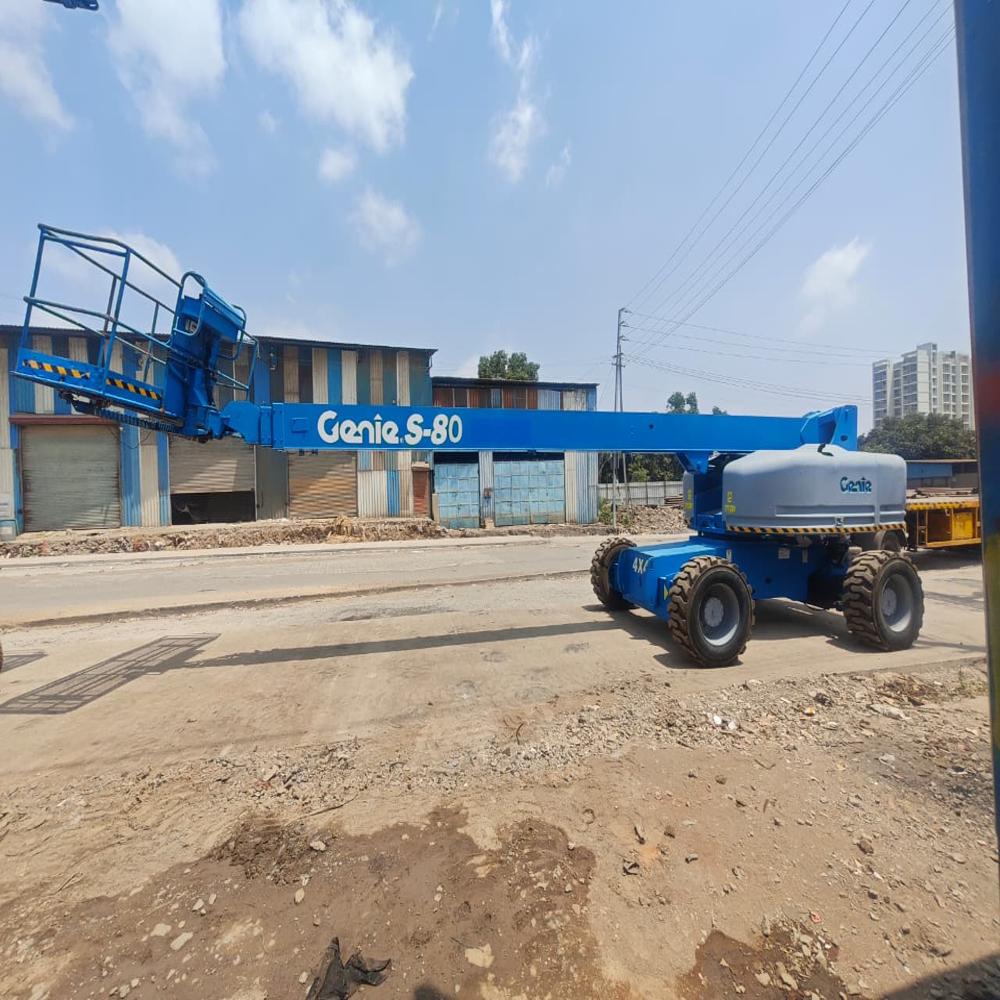

Genie S80 Telescopic Boom Lift

Name: Genie S80 Telescopic Boom Lift
Brand: DELIPACK VENTURES PRIVATE LIMITED
Price: 2400000.0 INR
Availability: InStock

Price 2400000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Genie S80 Telescopic Boom Lift Specification

Control System
Proportional Joystick Controls

Features
Telescopic Boom, High Productivity, Swing-Out Engine Tray

Lifting Speed
0.54 m/s (Platform Up)

Motor Type
Deutz Diesel Engine

Rotation Type
360 Continuous Turntable Rotation

Equipment Type
Boom Lift

Wheel Type
Rugged Pneumatic Tyres

Handle Type
Joystick Control Handles

Condition
New

Lifting Capacity
227 kg

Max. Lifting Load
227 kg

Max. Lifting Height
26.38 m (86 ft 7 in)

Power Source
Diesel

Power Consumption
Diesel Engine Powered

Voltage
12V (DC Auxiliary Power)

Feature
360 Continuous Rotation

Attributes
High Reach, Outdoor Use, Rugged Design

Drive Configuration
4WD

Overall Width
2.49 m (8 ft 2 in)

Platform Size
0.91 m x 2.44 m (3 ft x 8 ft)

Hydraulic Tank Capacity
170 L

Emission Compliance
Tier 4 Final

Platform Entry Height
2.44 m

Ground Clearance
0.43 m (1 ft 5 in)

Gradeability
45%

Overall Length
12.37 m (40 ft 7 in)

Stowed Height
2.80 m (9 ft 2 in)

Weight
16,783 kg

Horizontal Outreach
21.34 m (70 ft)

Turning Radius (Inside/Outside)
3.05 m / 5.33 m

Working Height
27.9 m (91 ft 6 in)

Drive Speed - Stowed
4.0 km/h

About Genie S80 Telescopic Boom Lift

The Genie S80 is a powerful telescopic boom lift designed for high-reach access and demanding jobsite conditions. It delivers up to 86 ft (26.4 m) of working height and approximately 71 ft (21.7 m) of horizontal outreach, making it ideal for large construction, industrial maintenance, and outdoor projects. Its straight boom design ensures fast elevation and excellent reach, while the platform provides smooth and precise positioning at height. With a 500 lb (227 kg) platform capacity, the machine easily handles operators and tools. Built for rough terrain, the S80 comes equipped with 4WD, oscillating axle, and heavy-duty foam-filled tires, ensuring stable operation and strong traction on uneven ground while maintaining reliable performance on the job site.

Exceptional Reach and Versatility

Maximize your operations with a remarkable maximum working height of 27.9 m and a horizontal outreach extending up to 21.34 m. The Genie S80 is ideal for accessing difficult, elevated areas, ensuring efficiency during maintenance, installation, or construction. Its telescopic boom and 360 continuous rotation enable flexible positioning and safe work at height.

Engineered for Outdoor and Rugged Use

Designed for demanding environments, this boom lift boasts robust pneumatic tyres, a 4WD drive configuration, and a tough Deutz diesel engine. These features allow it to traverse and work reliably on uneven or rough outdoor surfaces, delivering performance even in challenging site conditions.

Innovative Control and Productivity Features

Operators benefit from proportional joystick controls, a generous platform size, and a swing-out engine tray for easy maintenance. High lifting speed, a 170 L hydraulic tank capacity, and seamless control ensure fast cycle times and minimal downtime, elevating on-site productivity every day.

FAQ's of Genie S80 Telescopic Boom Lift:

Q: How does the Genie S80 Telescopic Boom Lift enhance productivity on construction sites?

A: The Genie S80's high reach, 360 continuous rotation, and rapid lifting speed (0.54 m/s) allow quick positioning and efficient access to elevated areas, minimizing downtime and streamlining work processes.

Q: What kind of terrains can the Genie S80 operate on efficiently?

A: Equipped with rugged pneumatic tyres, a robust 4WD system, and a high ground clearance of 0.43 m, the S80 is built to perform on uneven, rough, or sloped outdoor terrains commonly found on construction or maintenance sites.

Q: When is it best to use the Genie S80 for a project?

A: The Genie S80 is ideal when your project requires extended vertical and horizontal outreach, such as large-scale facility maintenance, roof installation, or outdoor construction, where working at heights up to 27.9 m is necessary.

Q: Where can the Genie S80 be deployed for maximum utility?

A: This telescopic boom lift is best suited for outdoor environments like large construction sites, industrial facilities, or infrastructure projects where maximum reach, heavy lifting, and maneuverability are crucial.

Q: What are the primary benefits of using proportional joystick controls on this lift?

A: The proportional joystick controls deliver smooth and precise movement of the boom and platform, providing operators with enhanced safety and better control, especially during intricate positioning tasks at height.

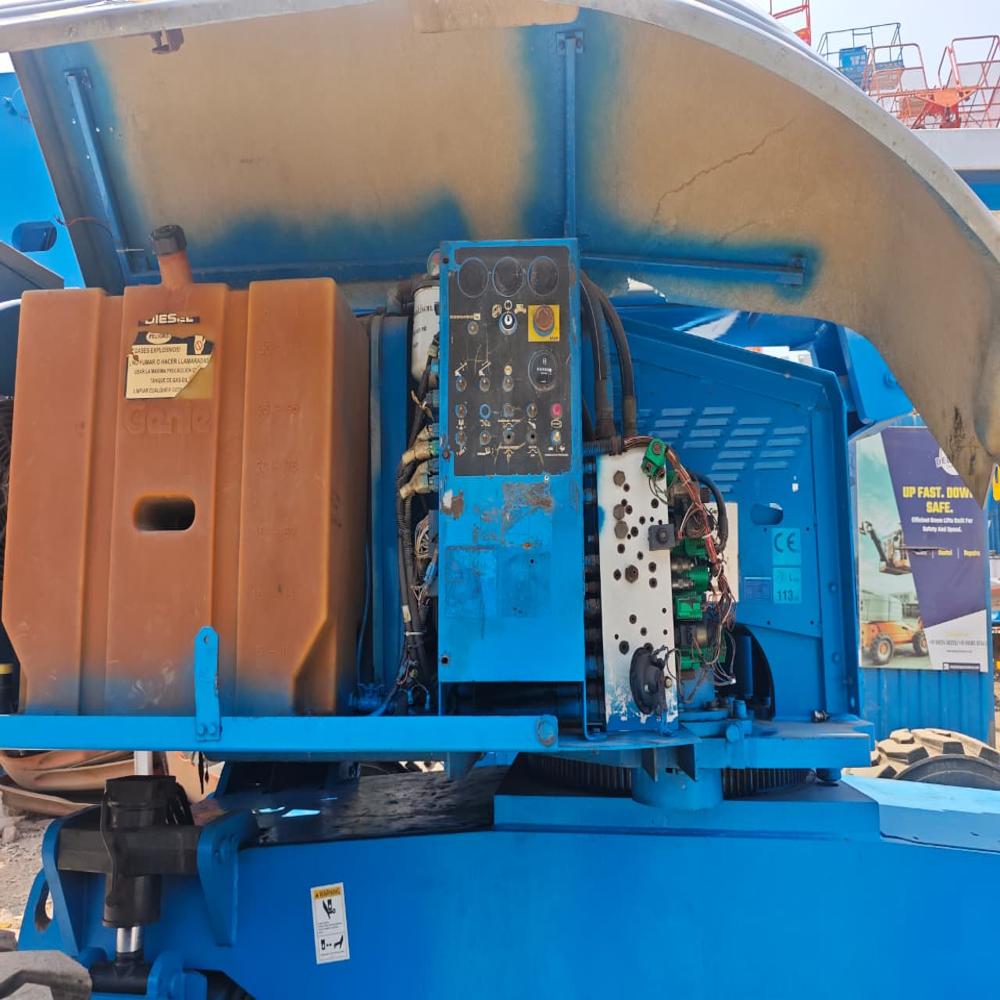

Q: How does the swing-out engine tray improve maintenance for operators?

A: The swing-out engine tray allows quick and easy access to the Deutz diesel engine and hydraulic components. This feature simplifies routine servicing and reduces maintenance-related downtime, keeping the equipment operational longer.
