HydraForce HF26656-012 Drive Manifold Valve Block for Boom Lift / AWP

Name: HydraForce HF26656-012 Drive Manifold Valve Block for Boom Lift / AWP
Brand: DELIPACK VENTURES PRIVATE LIMITED
Price: 200000.0 INR
Availability: InStock

Price 200000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HydraForce HF26656-012 Drive Manifold Valve Block for Boom Lift / AWP Specification

Capacity
Supports Multiple Hydraulic Functions

Surface Finish
Polished or Electroplated

Diameter
Multiple port sizes: 3/8 & 1/2 BSP (or as per OEM)

Features
High Strength, Compact Design, Leak-Free Performance, OEM Replacement

Lubricating System
Factory-Sealed, Maintenance-Free

Shape
Rectangular Block

Noise Level
Low (Hydraulic System Dependent)

Drive Type
Hydraulic Drive

Usage & Applications
Drive and Motion Control for Boom Lifts, Aerial Work Platforms (AWP)

Size
Standard OEM Fitment for Boom Lift/AWP

Motor Power
N/A (Operates via External Hydraulic Supply)

Product Type
Drive Manifold Valve Block

Material
High Grade Steel

Technology
Hydraulic Valve Manifold Technology

Power Source
Hydraulic

Power
N/A (Driven via Hydraulic System)

Voltage
24V DC (Typical Solenoid Control Voltage)

Pressure
Up to 250 bar (3625 psi)

Surface Treatment
Corrosion Resistant Plating

Dimension (L*W*H)
Approx. 210 mm x 110 mm x 110 mm

Weight
8.5 kg (Approximate)

Color
Silver/Grey

Suitable Brands
Genie, JLG, Haulotte, and other leading AWP manufacturers

Integrated Components
Solenoids, Check Valves, Relief Valves, and Flow Control Valves

Mounting Type
Bolt-On Mount

Port Configuration
Standardized OEM Hydraulic Porting

Number of Sections
Multi-Sectional for Parallel/Series Circuits

Fluid Compatibility
Mineral Oil Based Hydraulic Fluids

Operating Temperature Range
-20C to +80C

Control Type
Electro-Hydraulic

Replacement Part Number
HF26656-012 / OEM Equivalent

About HydraForce HF26656-012 Drive Manifold Valve Block for Boom Lift / AWP

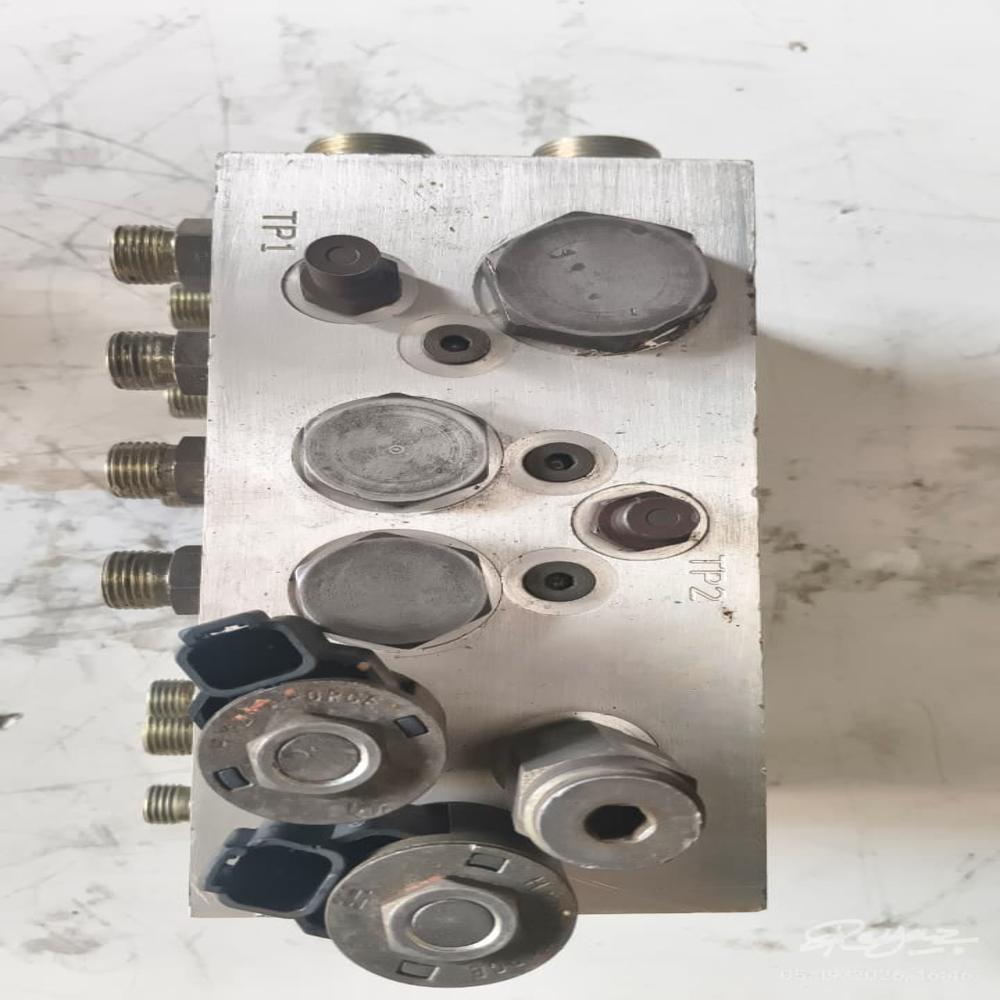

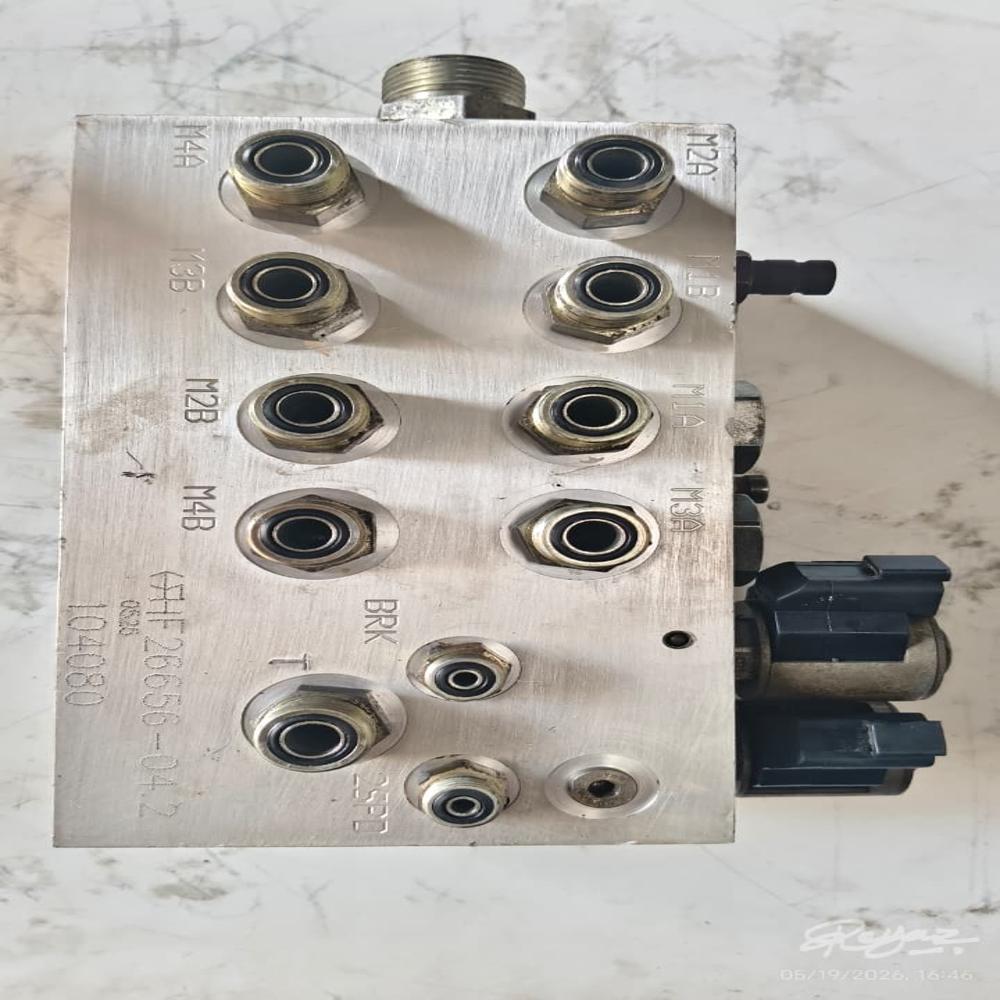

Used hydraulic drive manifold / wheel motor valve block. Visible marking HF26656-012, code 102080. Ports marked M1A, M1B, M2A, M2B, M3A, M3B, M4A, M4B, BRK, T, TP1 and TP2. Suitable for aerial work platform / boom lift drive hydraulic system. Buyer should match part number, port layout and machine serial number before purchase.

Optimized Hydraulic Motion Control

Experience advanced motion control for boom lifts and AWPs with the HF26656-012 Drive Manifold Valve Block. It manages multiple hydraulic functions efficiently, thanks to integrated solenoids, check valves, relief valves, and flow control valves. This design enables smoother, more reliable operation in complex working environments, reducing downtime and increasing productivity for service providers and operators.

Robust and Maintenance-Free Design

Constructed from high-grade steel with a corrosion-resistant finish, the HF26656-012 ensures durability and longevity even in tough conditions. Its factory-sealed, maintenance-free lubrication system saves on service time and expenses, while the polished or electroplated surface and compact rectangular block design offer both aesthetic and pragmatic benefits for easy installation and long-term use.

FAQ's of HydraForce HF26656-012 Drive Manifold Valve Block for Boom Lift / AWP:

Q: How is the HydraForce HF26656-012 manifold valve block installed on a boom lift or AWP?

A: This valve block utilizes a standardized bolt-on mount for straightforward integration with compatible boom lifts and aerial work platforms. Its OEM hydraulic porting and standard dimensions ensure easy, direct fitment in place of your existing manifold.

Q: What hydraulic fluids are compatible with the HF26656-012 valve block?

A: The manifold valve block is specifically designed for use with mineral oil-based hydraulic fluids, providing optimal efficiency and performance as recommended by leading AWP manufacturers.

Q: When should this valve manifold be replaced or installed?

A: Consider installing or replacing the HF26656-012 valve block when experiencing hydraulic control issues, decreased motion precision, noticeable leaks, or as part of routine equipment maintenance for Genie, JLG, Haulotte, or similar AWP brands.

Q: Where can the HF26656-012 be used and with which brands is it compatible?

A: It is suitable for use in boom lifts, scissor lifts, and AWPs from leading brands such as Genie, JLG, Haulotte, and other OEM-equivalent machines requiring standardized multi-section hydraulic manifolds.

Q: What is the process for controlling hydraulic functions with this manifold block?

A: Electro-hydraulic control via 24V DC solenoids allows precise management of multiple functions. Integrated check, relief, and flow control valves work together to deliver seamless, leak-free operation within parallel or series hydraulic circuits.

Q: What benefits does the HF26656-012 offer compared to standard manifold blocks?

A: This block offers leak-free, high-strength performance in a compact, polished design. Its maintenance-free, corrosion-resistant construction ensures reduced downtime and long service life-ideal for heavy-duty, continuous AWP operation.
